Warping Machine

Your Leading Warping Machine Supplier

XIANGYING MACHINE MANUFACTURING CO., LTD (NEW POWER TECHNOLOGY CO., LTD ) is a private science-tech enterprise which is specialized in the development, production, sales, and service of high speed terry towel warp knitting machines, high speed tricot machines, warping machines, and spare parts. Our warping machine is divided into direct warping machine and sectional warping machine. The machines are widely used in the textile industry for producing fabrics with different types of yarns.

Why Choose Us?

Strong Strength

The company was founded in the year 2008 and covers an area of over 10000㎡ with advanced manufacturing technologies and powerful technical forces with precise processing equipment such as horizontal, vertical, and gantry processing centers.

Broad Market

We already have a strong overseas marketing team and have established long-term and loyal cooperation relationships with our customers in some countries where the textile business is developing rapidly like India, Turkey, South America, Egypt, Russia, Uzbekstan, etc.

Excellent Service

We not only provide one-year quality guarantee, but also provide you with the whole process of pre-sales and after-sales service. We try our best to provide the best cost performance to improve customer satisfaction.

First 12 Last

Introduction to Warping Machine

A warp machine is a machine used in the textile industry to prepare the longitudinal threads (warp) for threading. The warp machine is responsible for winding the yarn onto a warp beam, sizing the yarn, and arranging the threads in the proper configuration for use on a loom.

Specifications of Warping Machine

Beam size:	φ55"×42",φ40"×42"
Warping speed:	50-800m/min
Electricity main power:	15 Frequency motor
Tension roller motor:	5w Frequency motors
Yarn Storage length:	≤10 meters
Copy precision:	a.Circular number same; b.Perimeter
Maximum length record:	no limitation by computer
Spindle pitch:	400*400mm(custom-tailor)
Total ending:	936 (600-1800 According to requirement)

Functions of Warping Machine

Improve production efficiency

The warping machine uses advanced mechanical technology and control systems to achieve the automatic threading of yarns into the reed and heald wires, greatly increasing the drawing-in speed. Compared to traditional manual drawing-in, the warping machine can complete a large amount of threading work in a short time, reducing the cumbersome and time-consuming manual operations. This not only shortens the production cycle but also improves the overall efficiency of the production line.

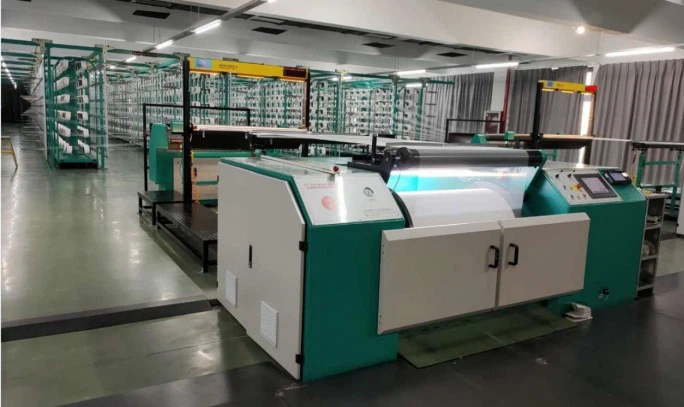

Sectional Warper for Filament and Technical Fibers

Reduce production costs

The adoption of warping machines has significantly reduced labor costs in textile production. As the machines can take over the manual drawing tasks, enterprises can conserve substantial human resources and decrease expenditures on labor costs. Furthermore, these machines minimize yarn waste and quality issues arising from human operational errors, thereby further reducing overall production costs.

Enhancing product quality

Equipped with high-precision drawing-in capabilities, drawing-in machine ensures uniform distribution and precise alignment of yarns on reed and healds. This precise drawign-in method results in clearer and more even textures in fabrics, subsequently elevating product quality. Additionally, by reducing yarn crossovers and tangles, these machines avoid production malfunctions caused by yarn confusion, further improving product stability and reliability.

Strong adaptability

Warping machines, as typical shuttleless machine, demonstrate robust adaptability, capable of accommodating various types and specifications of yarns as well as different models of warp beams. By adjusting machine parameters and settings, rapid responses to diverse production requirements can be achieved. This flexibility presents broad application prospects for warping machines in textile production, enabling them to meet the needs of diverse industries and sectors.

Requirements for Using Warping Machine

The yarn is wound onto the warp beam in a parallel and uniform manner, with proper tension to avoid breakage.

Sizing the yarn

The sized yarn is wound onto the warp beam to ensure proper tension and to protect the yarn from breakage during the weaving process.

Beam preparation

The beam is prepared for use on the loom, including the installation of end-stops and the winding of the yarn onto the beam.

Threading the loom

The warp threads are threaded through the heddles and reed to prepare for weaving.

Applications of Warping Machine

Warping Machines have a broad range of applications in the textile industry, benefiting various sectors, including clothing, home furnishings, industrial textiles, and more.

Apparel and Fashion
In the clothing industry, single -end warping machines are essential for producing fabrics used in clothing. They create warp beams with uniform, continuous yarn ends, ensuring consistent, high-quality fabrics for garments like denim, shirting materials, suiting fabrics, athletic wear, and fashion accessories.

Home Furnishings
For the home textiles sector, these machines are instrumental in producing warp beams for upholstery fabrics, bed sheets, pillowcases, curtains, drapes, and other interior decor textiles. They help maintain consistent yarn tension for durable and appealing products.

Industrial and Technical Textiles

Industries such as automotive, aerospace, and construction rely on Warping Machines to create warp beams for specialized technical textiles. These textiles, including airbags, seatbelts, and reinforced composites, meet stringent quality and safety standards.

Workwear and Uniforms

Single- end warping machines are crucial in the production of work uniforms and industrial workwear, ensuring that fabrics meet the strength and performance standards required in various industries.

Custom Textile Design

Textile designers use single- end warping machines to create custom-designed fabrics, alowing them to experiment with different yarn types and patterns to achieve specific artistic and aesthetic effects.

Packing Shipping

FAQ

Q: What is the use of warping machine?

A: Direct warping machines are machinery used in the textile industry where large production of consistently the same or similar items is required. In fact, they are normally used for the production of fractional beams of lower density that are later brought together to form the complete beam to be loom-mounted.

Q: What are the advantages of warping machine?

A: An advantage to sectional warping is that you can wind a long warp as easily as a short one without any worry about warp tension. Also, you don't have to put paper or warping sticks between the layers on the warp beam.

Q: What are the components of warping machine?

A: Warping machine has three major components:
Yarn guide : To guide the yarn. Tension by upper & lower disc tensioner.
Yarn cleaner :To remove various faults of the yarn like slubs, neps, etc.
Ceramic guide disc : To guide the yarn from creel to warping m/c.

Q: What is the key weaving part of the warping machine?

A: The warp machine is a critical component of the weaving process as it ensures the quality and consistency of the warp threads, which directly affects the quality of the final woven fabric.

Q: How to use warping machine?

A: The warp machine is responsible for winding the yarn onto a warp beam, sizing the yarn, and arranging the threads in the proper configuration for use on a loom. The machine typically includes a creel for holding the yarn, a beam winding system for winding the yarn onto the warp beam, and a tensioning system to maintain consistent tension on the threads during the winding process.

As one of the most professional warping machine manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy the best warping machine for sale here from our factory. Contact us for custom service.
