Double Needle Bar Raschel Machine

Your Leading Double Needle Bar Raschel Machine Supplier

XIANGYING MACHINE MANUFACTURING CO., LTD (NEW POWER TECHNOLOGY CO., LTD ) is a private science-tech enterprise which is specialized in the development, production, sales, and service of high speed terry towel warp knitting machines, high speed tricot machines, warping machines, and spare parts. Our Double needle bar raschel machine comes in many varieties and has a wide range of uses. Contains Flannel high speed warp knitting machine, Coral fleece cleaning towel fabric high speed warp knitting machine, Carpet double needle bar raschel machine, Blanket double needle bar raschel machine, Coral fleece double needle bar warp knitting machine, Blanket double needle bar warp knitting machine.

Why Choose Us?

Strong Strength

The company was founded in the year 2008 and covers an area of over 10000㎡ with advanced manufacturing technologies and powerful technical forces with precise processing equipment such as horizontal, vertical, and gantry processing centers.

Broad Market

We already have a strong overseas marketing team and have established long-term and loyal cooperation relationships with our customers in some countries where the textile business is developing rapidly like India, Turkey, South America, Egypt, Russia, Uzbekstan, etc.

Excellent Service

We not only provide one-year quality guarantee, but also provide you with the whole process of pre-sales and after-sales service. We try our best to provide the best cost performance to improve customer satisfaction.

Introduction to Double Needle Bar Raschel Machine

Developed to produce versatile knitted structures, the raschel double needle bar machine features a built-in piezo jacquard system that is capable of joining thick sectional fabric structures smoothly and seamlessly. The fabrics from jacquard double needle bar raschel machines mainly used as patterned spacer textile, seamless garments, and belts.

Specification of Double Needle Bar Raschel Machine

S/N	Description	Specification
1	Model	GE288B
2	Needle type	Embedded Latch needle (individual needle) Brand: Germany Yantex ,Other needles elements are famous China-made brand
3	Working Width	90inch , 100inch ,110inch,138inch
4	Gauge	16G/18G/22G
5	Guide bar	5 bars( one pile yarn bar ,four ground bars )
6	Warp shaft size and beam size	Warp shaft dia 152mm Beam size for pile bars Φ40"×21", ground barsΦ30"×21"
7	Max Speed	850rpm
8	Double pile height	10-50mm
9	Main Drive	Oil –immersed cam drive
10	Main motor power	4kw
11	Yarn Let off device	Electronic yarn let off
12	Pattern Drive	Pattern cam
14	Fabric take-up	Electronic take up
15	Batching Device	Independent motor controlled batching device.Max batching Diameter :1300mm.
16	Electrical Device	Three phase alternating –current supply 380V/50HZ.Frequency control
17	Laser Stop Device	Three groups of infrared laser yarn break auto stop device(SanLi Brand )

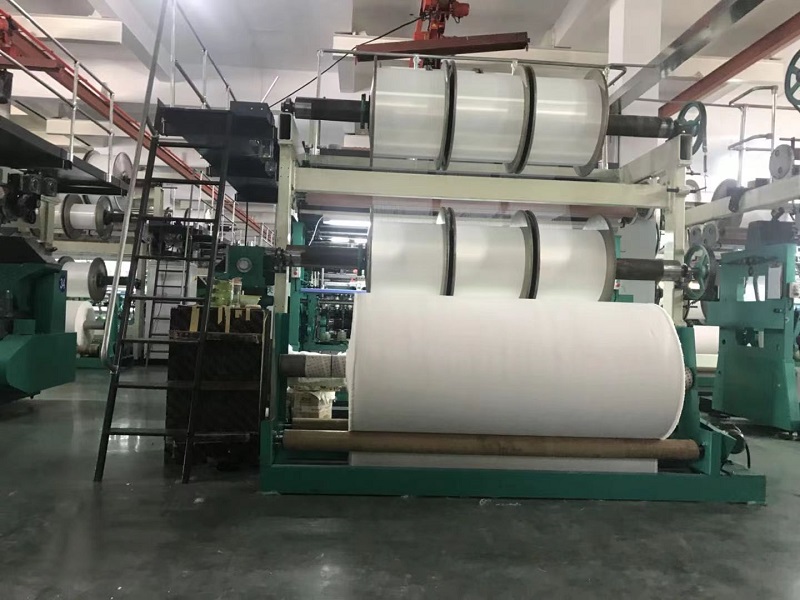

Coral Fleece Double Needle Bar Warp Knitting Machine

Functions of Double Needle Bar Raschel Machine

● The machine is durable, with long service life and stable operation;

● Can produce bags and flat yarn mesh with high enough strength;

● Multiple 4-9;

● Simple operation and maintenance (daily maintenance, cleaning, simple needle replacement);

● EBA electronic warp let-off system, from mechanical to automatic, precisely controls the warp let-off amount, and the adjustment is more convenient.

Spindle speed measurement 400 rpm, decibel 80

Applications of Double Needle Bar Raschel Machine

After cutting and finishing, the fabric can be formed medium pile fabric which pile height can be 5-25mm, the fabric pile is full and soft .Pile yarn into a circle and not detached from the base fabric.

The double needle bar raschel machine is widely used in plush toys, fur coat, carpets, blankets and other products such as flannel, coral fleece, Kirin cashmere,circle fleece, PV velvet ,simulation fur etc.

Requirements for Using the Double Needle Bar Raschel Machine

01/

Poor quality of mechanical parts, inadequate installation and coordination of components, and subpar maintenance lead to severe wear of parts during prolonged operation.

02/

Issues arising from raw material quality, such as improper selection of raw material and yarn fineness, resulting in defective yarn during spinning. Problems like thick/thin places, impurities, neps, weak twist, or insufficient washing and softener usage during dyeing and finishing can also contribute.

03/

Inadequate preparation processes, including excessive spacing in clearing the yarn, presence of thick yarn or yarn ends not properly cleared, and improper lubricant usage.

04/

Lack of proficiency in the operation of knotting and carriages by the warper and guide bar operator.

05/

Poor quality of knitting machine components (knitting needles, yarn carriers, etc.) and improper adjustments.

06/

Unreasonable process planning, such as mismatching yarn fineness with machine gauge.

Transportation and Delivery

FAQ

Q: What warp knitting fabrics could be produced from your double needle bar raschel machines?

A: Double needle bar raschel machines are used for producing three-dimensional textiles. Depending on your requirements, our machines can produce spacer textiles having thicknesses of from 1 mm up to approximately 65 mm. This technology is also suitable for producing seamless warp knits and fine lingerie fabrics.

Q: Is there an actual warp beam in a double needle bar raschel machine?

A: The warp yarns are wound equally on small narrow warp beam, and then a number of small narrow warp beam are threaded side by side on a core shaft to form a weaving beam. Then it is installed to the warp knitting machine for weaving.

Q: How does a double needle bar raschel machine work?

A: In double needle bar raschel machines, a series of yarn threads (the warp) are threaded through yarn guides, which direct the yarn around a needle to create parallel rows of loops (stitches) simultaneously, which are interlocked in a zig-zag pattern to form fabric.

Q: What fabrics are created on double needle bar raschel machines?

A: Raschel knitting machines produce flat and tubular warp-knit fabrics similar to crochet and lace. Raschel knit fabric can contain inlaid yarns and vertical rows of stitches. The fabrics are like tricot knitting but more open and with a rugged texture.

Q: What does a double needle bar raschel machine do?

A: Double needle bar raschel machines make a form of lace by transferring stitches between the two beds of needles. The Passap transfer attachment can be used to create lace. Machines without a lace carriage or facility can still be used to create lace by manually manipulating the stitches (hand transfer) before knitting the row.

As one of the most professional double needle bar raschel machine manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy the best double needle bar raschel machine for sale here from our factory. Contact us for custom service.
