Application:
SGE342 series sectional warper for filament and technical fibers is developed according to the requirement of the market: high-speed and high-density warp-knit, superfine and high-elastic filaments, difference-fiber, and add-value products, by our company's patent and international advanced experience. This is a multi-function section warping machine. It is suitable for a wide range of products, including filaments of chemical fibers, low-elastic yarn, acrylic, and cotton spun yarn. It is also workable for single filament. The technique level is advanced in Word. It is the best equipment for high-speed warp-knit machines.
Specification and Index
1. Beam size: φ55"×42", φ40"×42"
2. Warping speed: 50-800m/min
3. Electricity main power: 15 Frequency motor
4. Tension roller motor: 5w Frequency motors
5. Yarn Storage length: ≤10 meters
6. Copy precision: a. Circular number same, b. Perimeter
7. Maximum length record: no limitation by computer
8. Spindle pitch: 400*400mm(custom-tailor)
9. Total ending: 936 (600-1800 According to requirement)
Main Technical Characteristic:
1. This sectional warper for filament and technical fibers uses a beam frequency conversion system, frequency tension control system, tension control system, PLC computer, and colorful touchable screen for the whole electricity control center. Inline follow-up guarantees high-speed warping under situations of stable line speed, tension, and density, high precision control, low difference in tension, and conformance of line and diameter.
2. It is our company's patent of Equipment of stationary tension rollers by double motors driving. Top and bottom rollers are separately driven and controlled by a computer, according to tension feedback. It has low changes in tension and good conformance for all sorts of yarns and filaments. The line reed can be moved up-down and left-right traverse. It is no abrasion on the reed and roller. It has advanced design, high control precision, stable, and first in the country.
3. This machine has a computer copy function. It can self-inspect the diameter, length, and circular number of beams. According to samples, to copy beams in the same parameters, such as diameter, length, and circular number, by high intelligence.
4. It uses yarn-layer sensor equipment to keep the tension of all yarn-layers stationary, by tension balance rollers and double motors drive equipment and computer to achieve closed-loop control.
5. It is the mountain-shaped floating structure of telescopic reed and speed rollers. It is proportioned by floating frequency to beam revolution speed, to make a fine-shape beam, no pressed yarn, and smooth and fluent unwinding for woven or knit.
6. The machine has equipment for oiling, fluff detector, dropper stop motion, pneumatic beam put-on and take-off, pneumatic breaker, and sticker board. It is fully functional and safety enough.

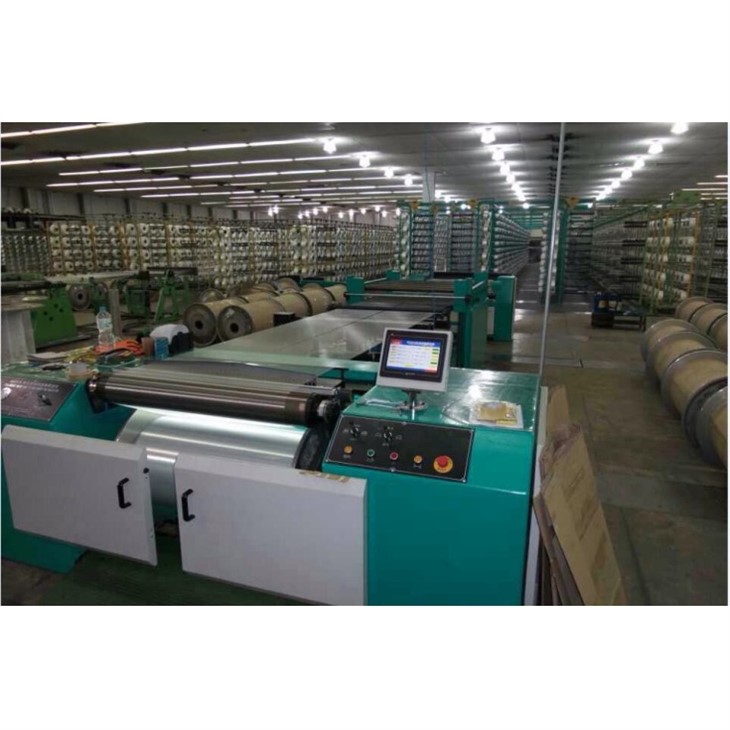

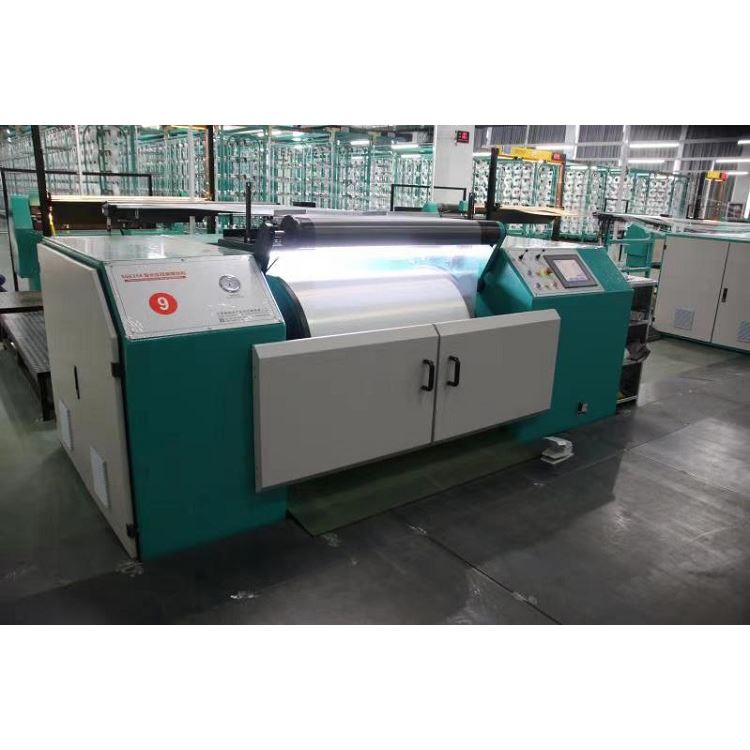

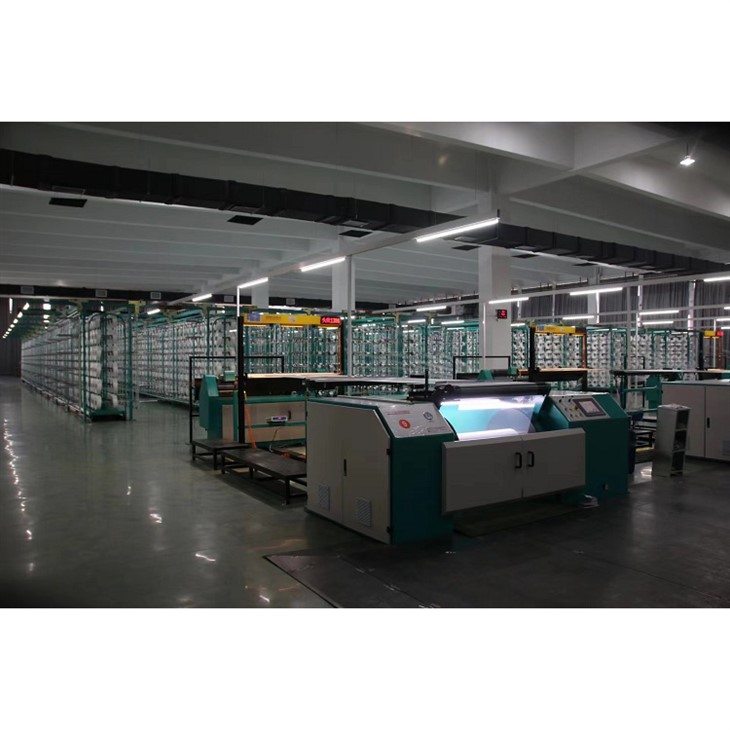

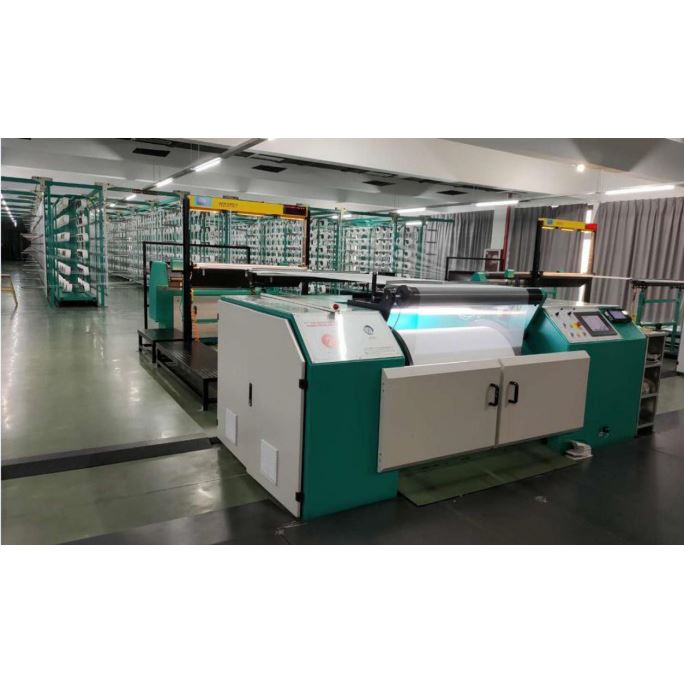

Details of Section Warping Machine
