After cutting and finishing, the fabric can be formed medium pile fabric which pile height can be 5-25mm, the fabric pile is full and soft .Pile yarn into a circle and not detached from the base fabric. The machine is widely used in plush toys, fur coat, carpets, blankets and other products such as flannel, coral fleece, Kirin cashmere,circle fleece, PV velvet ,simulation fur etc.

Machine specification

S/N	Description	Specification
1	Model	GE288
2	Needle type	Embedded Latch needle (individual needle) Brand: Germany Yantex ,Other needles elements are famous China-made brand
3	Working Width	90inch , 100inch ,110inch,138inch
4	Gauge	16G/18G/22G
5	Guide bar	5 bars( one pile yarn bar ,four ground bars )
6	Warp shaft size and beam size	Warp shaft dia 152mm Beam size for pile bars Φ40"×21", ground barsΦ30"×21"
7	Max Speed	850rpm
8	Double pile height	10-50mm
9	Main Drive	Oil –immersed cam drive
10	Main motor power	4kw
11	Yarn Let off device	Electronic yarn let off
12	Pattern Drive	Pattern cam
14	Fabric take-up	Electronic take up
15	Batching Device	Independent motor controlled batching device.Max batching Diameter :1300mm.
16	Electrical Device	Three phase alternating –current supply 380V/50HZ.Frequency control
17	Laser Stop Device	Three groups of infrared laser yarn break auto stop device(SanLi Brand )

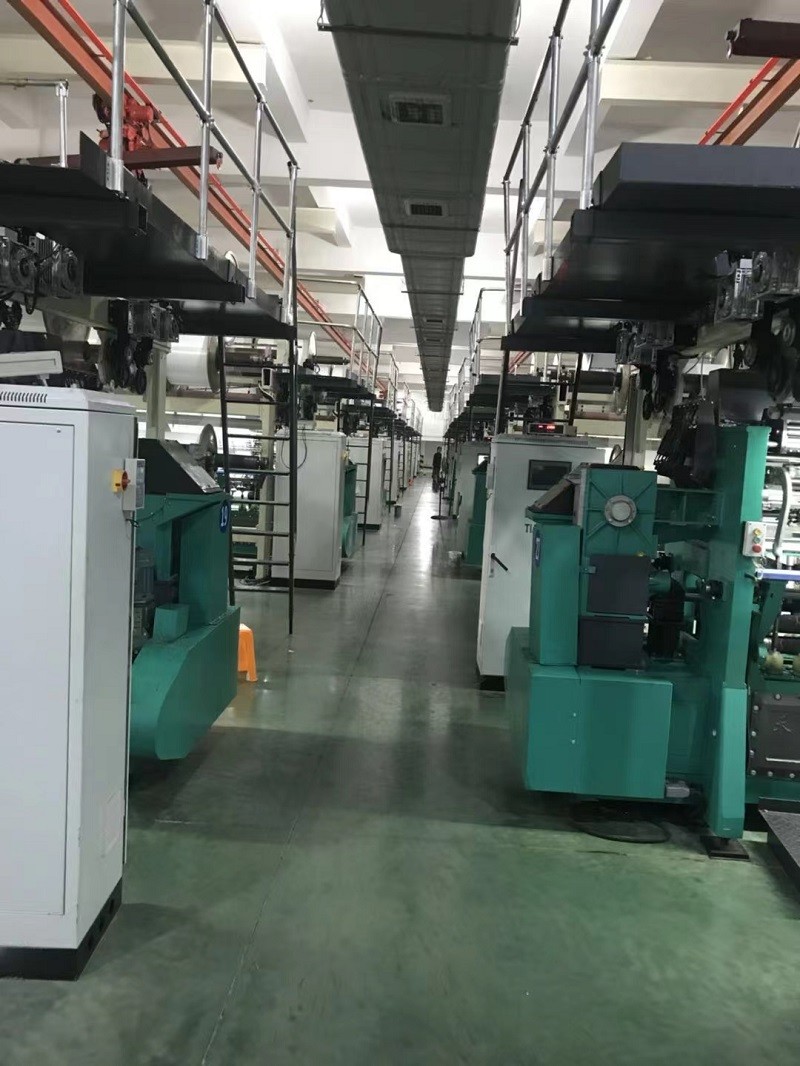

Main machine Configuration

1. Knocking over part

Two individual type latch needle bars, two knocking-over bars, two sinker bars, five guide bars(one pile bar, 4 ground bars) which each equipped with accordingly guide yarn needle block and separate yarn needle block .sinker needle bar with sinker needle block , two pcs closed steel wire.

2. Warp shaft support

Warp shaft support can install 4 sets ground bar yarn let off device and 1 pile bar yarn let off device

Warp shaft dia 152mm, on the warp shaft can bear pile yarn bar for beam size Φ40"×21 and Ground bar for beam size Φ30"×21"

3.Yarn let- off device

Two-roller positively yarn let-off, change the let- off amount by the servo motors , 5sets EBA type yarn let- off driven.

4.Pattern Drive Mechanism

We will supply pattern drive device for one set according to fabric workmanship .

5.Fabric take –up and batching device

Take up and batching rollers driven by take up and batching servo motors ,independent batching device

6. Electrical Device

Three phase alternating –current supply 380V/50HZ.Frequency control, Main Motor:4kw

Configuration of main electrical parts

Main Motor	Siemens
Low Voltage Electrical Apparatus	Schneider
Servo Motor	INOVANCE
Encoder	Autonics
Frequency Converter	INOVANCE
Touch Screen	MCGS
Key Part Bearing	INA
Programmable	INOVANCE
