Products Description

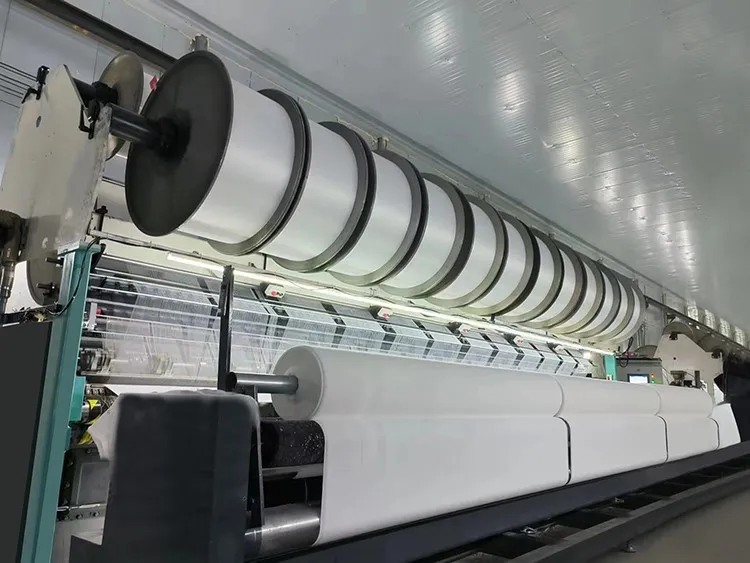

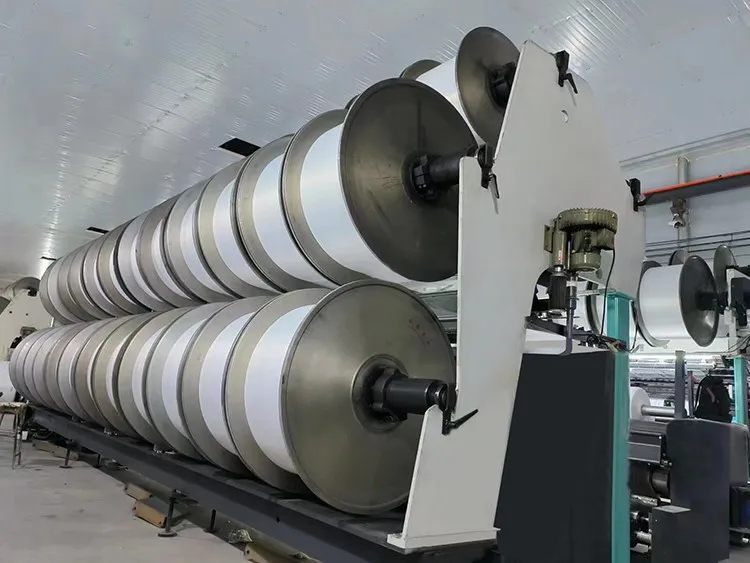

KS4BMHY-EL automatic warp knitted micro fiber terry machine with an electronic traversing control system(EL), the machine can make any change in the quantity of horizontal and row, So it can make single, double looped fabric, interval looped fabric and a variety of different patterns of looped fabric. The machine can make automatic product conversions when running which greatly satisfies the multi usage requirement of the end user.
Main Technical Specification
|
Model |
KS4BMHY-EL |
|
Needle Type |
Compound needle |
|
Gauge |
E24 E26 E28 |
|
Working Width |
190", 220", 268" |
|
Guide Bar No. |

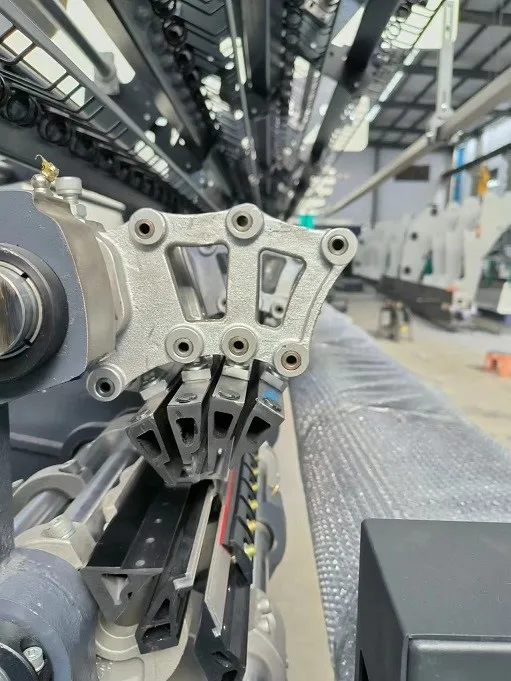

Four bars |
|
Main Drive |
Crank Linkage |
|
Max Speed |
1500rpm (190"), 1400rpm(220"), 1200rpm(268") |
|
Loop Height |
L1: 4mm (Max.) L4: 10mm (Max.) |
|
Pattern Drive |
Pattern cams with moving -change device (Optional: electronic traversing) |
|
Yarn Let-off Device |

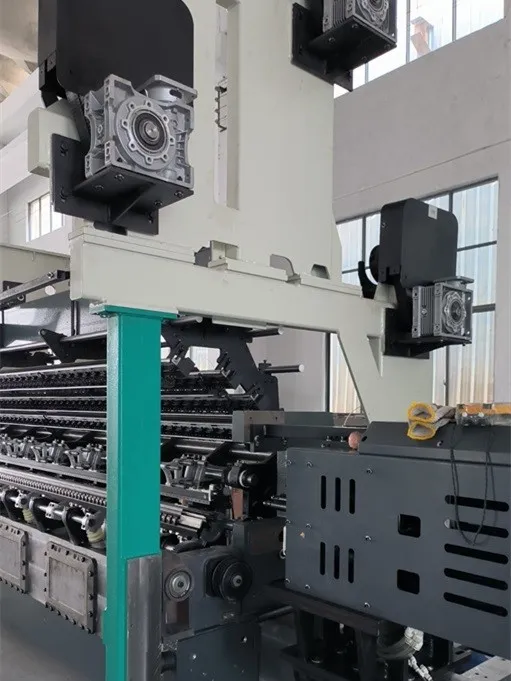

EBA/EBC electronic yarn let-off |
|
Fabric Take-up |
Electronic draw-off mechanism |
|
Oil Supply |
Crankshaft connection rod lubrication oil circuit, forced pressure lubrication, centralized heating and cooling |
|
Batching Device |
Independent batching device with fillets |
|
Power |
Main Motor: 7.5kw(190"); 9kw(220"); 11kw(268") Inching Motor: 0.75kw Oil circulation: 1.5kw Brushing device: 2.2kw(190"); 3kw(220"); 3.5kw(268") |
|
Beam Size |
∅30*21" ∅42*21" |
|
Optional Device |

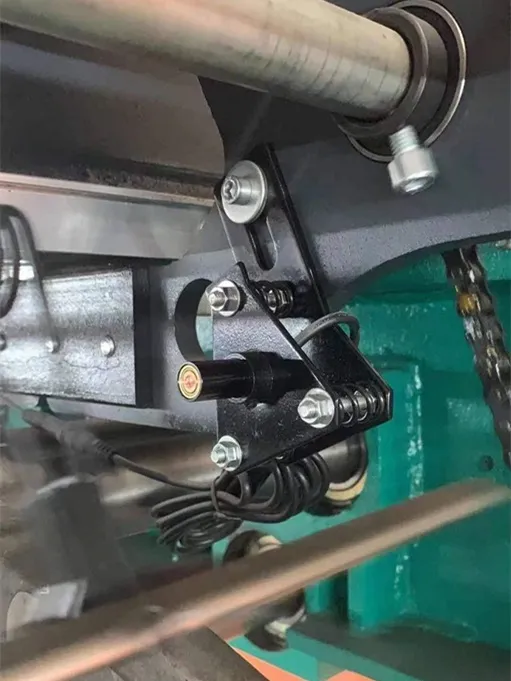

Integrated broken yarn laser automatic stop device (optional) |
Machine Application
KS4BMHY-EL series automatic warp knitted micro fiber terry machines are a valuable addition to the textile industry, providing a wide range of applications and benefits. These machines are capable of producing high-quality terry fabrics that are soft, absorbent, and durable, making them ideal for use in a variety of applications. The microfiber material used in the terry fabric is highly effective at capturing dirt, dust, and debris, making it a popular choice for cleaning applications. The fabric is also durable, allowing for repeated use and washings. It also be used to produce a variety of other products, including bath mats, kitchen towels, and even sportswear.
